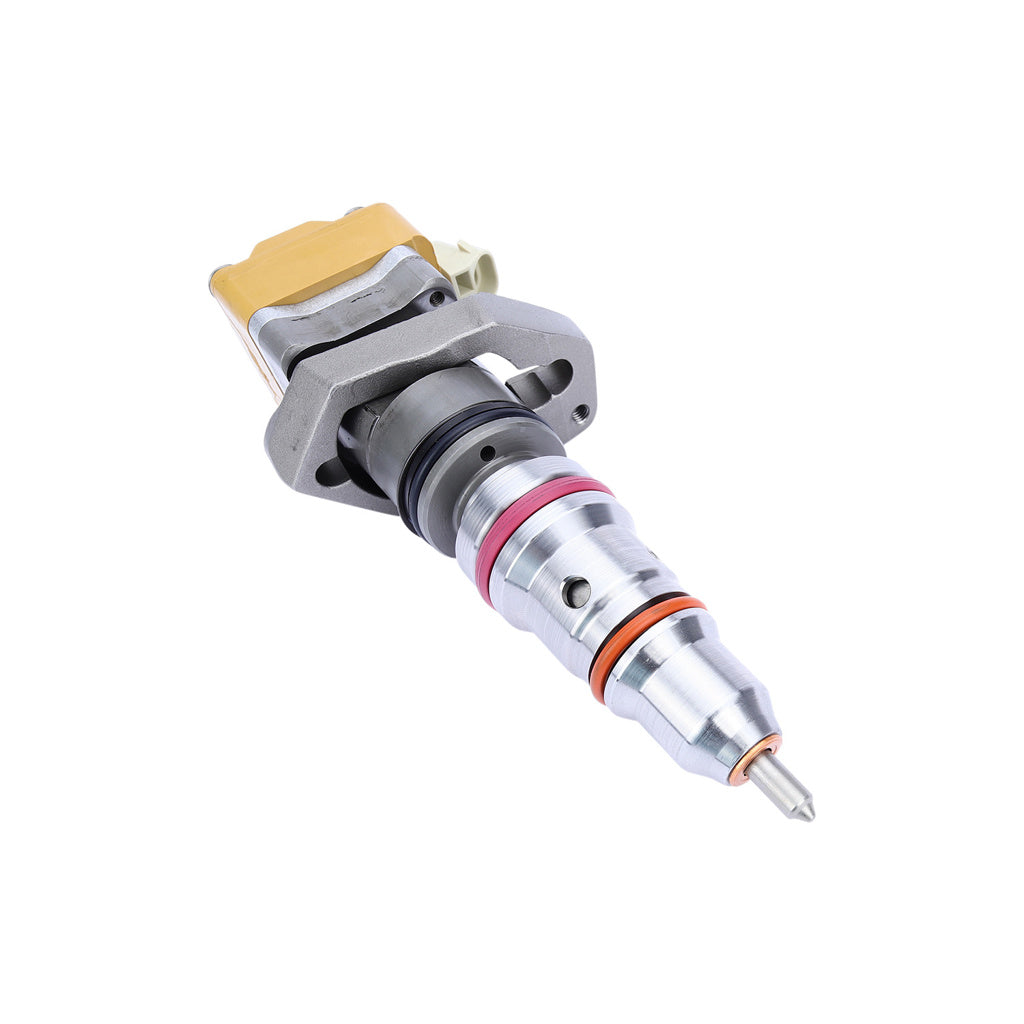

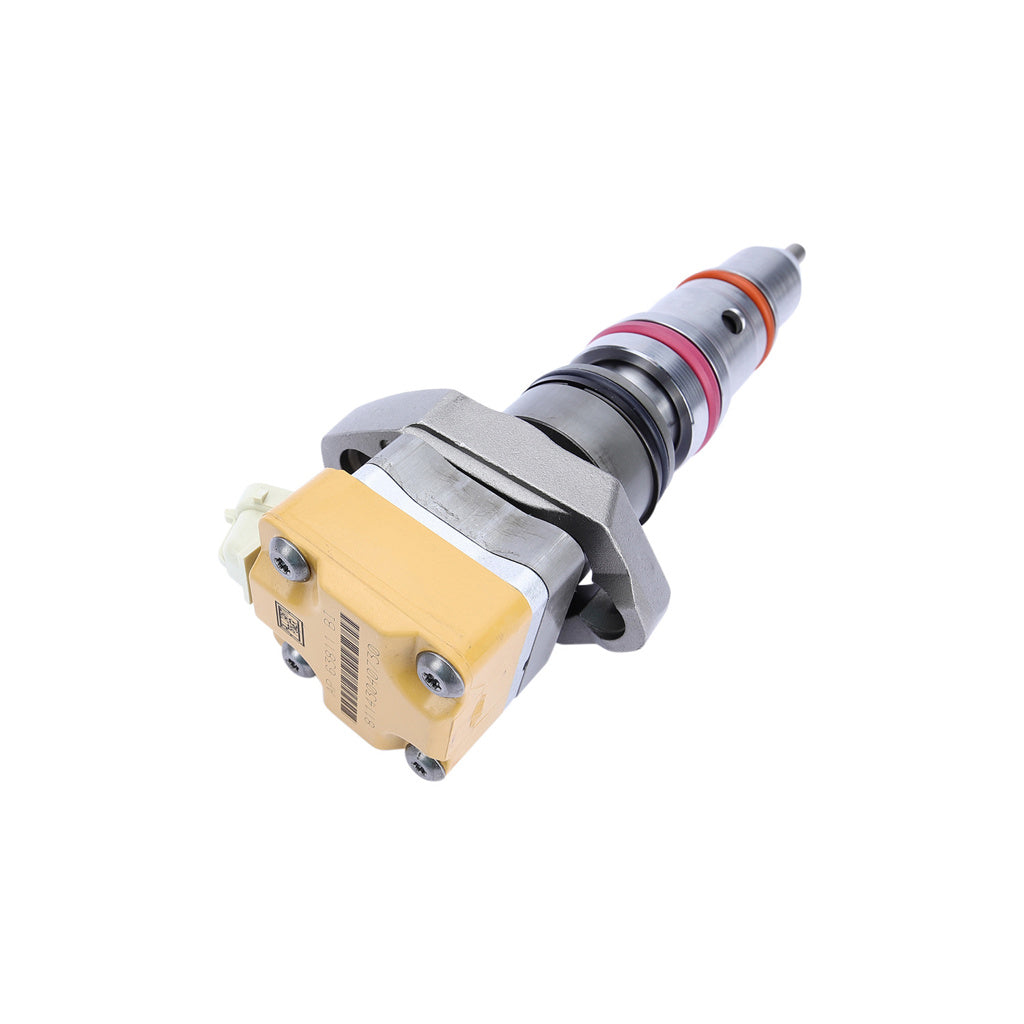

Fuel injectors are essential components of any diesel engine’s fuel system, tasked with delivering the precise amount of diesel fuel into the combustion chamber at exactly the right moment. This process is critical for achieving optimal engine performance, fuel economy, and emissions control. In modern diesel engines, the Hydraulic Electronic Unit Injector (HEUI) system stands out as a sophisticated advancement over traditional mechanical injection systems. The entire injection system in HEUI-equipped engines is designed for precise control and reliability. Unlike conventional injection pumps that rely solely on mechanical force, the HEUI system utilizes a high pressure oil pump to generate the hydraulic pressure required for fuel injection. This high pressure oil is used to actuate the injectors, allowing for more accurate control of both injection timing and injection pressure. As a result, the HEUI system can respond dynamically to changing engine conditions, delivering improved power, efficiency, and reduced emissions. Unlike a mechanical system, the injector HEUI fuel system uses hydraulic and electronic controls to manage oil flow and fuel delivery. Key components of the HEUI system include the high pressure oil pump, injection control pressure sensor, injection pressure regulator, and the unit injector itself. The high pressure oil pump supplies the required oil volume and hydraulic force, while the injection control pressure sensor continuously monitors the system’s high pressure oil pressure and relays this information to the engine control module. The injection pressure regulator ensures that the high pressure oil remains within the optimal range for efficient fuel injection. The unit injector, powered by this high pressure oil, delivers fuel directly into the combustion chamber with exceptional precision. The fuel injection control module and injector solenoid play a critical role in the injector firing process explained, as the control module sends a fuel delivery signal to the solenoid, which then actuates the poppet valve or spool valve to initiate injection. Supporting sensors such as the engine oil temperature sensor, manifold absolute pressure sensor, and camshaft position sensor provide real-time data to the engine control module. This data is crucial for calculating the ideal injection timing and pressure, adapting to factors like engine speed, load, and temperature. The result is a highly responsive fuel injection process that maximizes engine performance and fuel economy. The fuel delivery signal from the control module activates the injector solenoid, which in turn controls the poppet valve or spool valve inside the injector. However, the advanced nature of the HEUI system also means it is more sensitive to contaminants like dirty oil. Maintaining clean engine oil and ensuring the integrity of the high pressure oil system are vital for preventing issues that can affect injection timing, fuel delivery, and overall engine performance. Poor maintenance can also lead to leftover fuel pressure and high pressure fuel leakage, which may compromise injector operation. By leveraging high pressure oil and electronic controls, the HEUI system represents a significant leap forward in diesel injection technology. Understanding its operation and key components enables technicians and vehicle owners to better maintain, diagnose, and repair their engines, ensuring long-term reliability and efficiency. When comparing the HEUI injection system to common rail and mechanical systems, several distinctions emerge. The HEUI system uses pressurized oil, specifically high pressure engine oil, as the hydraulic medium to actuate injectors, while common rail systems rely on pressurized fuel stored in a rail and mechanical systems use direct mechanical actuation. High injection pressures in HEUI and common rail systems enable better atomization of diesel fuel, improved combustion, and lower emissions. Features such as dual injection event, pilot injection, and pilot injection feature (including called pilot injection) are used to optimize combustion and reduce noise and emissions. In HEUI injectors, the poppet valve (used in 7.3L Power Stroke) and spool valve (used in 6.0L Power Stroke) control oil flow; poppet valves typically last longer due to larger internal clearances, while spool valves offer more precise control but are more susceptible to contamination. The intensifier piston and intensifier piston flows multiply oil pressure to actuate the plunger, which simultaneously strokes downward to pressurize fuel and lift the nozzle needle, allowing atomized fuel to enter the combustion chamber. Proper oil flow, required oil volume, and high pressure oil pressure are essential for creating injection pressures in the high pressure circuit. The high pressure oil pump is designed to create pressure by supplying more high pressure oil as oil demand increases, directly controlling engine performance. The duty cycle of the injection pressure regulator serves as a diagnostic indicator for diagnosis or performance applications, revealing how hard the system is working. The oil drain pathway and adapter drain hole are integral to the injector’s operation, allowing spent oil to exit after each injection event. Understanding the entire injection system, from the fuel injection control module and injector solenoid to the plunger and nozzle needle, is crucial for maintaining optimal performance in diesel injection systems. OE HEUI Fuel Injector, Navistar, Perkins.
